HCR Racing Dual Sport Maverick X3 64" to 72" Conversion Kit

FEATURES

• Bend design in A-arms and trailing arms adds 1.5” of ground clearance

• Manufactured with HCR Elite Alloy, 30% stronger than 4130 chromoly

• Improved approach angles reduce surface contact and friction

• Chromoly mounting points for increased structural integrity

• TIG-welded by hand for strength and aesthetics

HCR’s Dual Sport Maverick X3 64" to 72" Conversion Kit is designed to give your 64” model the stature and capability of the 72” X3. HCR’s signature high-clearance A-arm and trailing arm design increases ground clearance 1.5 inches. Optimized approach angles help your machine clear obstacles more easilty. All the suspension components are built from HCR's proprietary Elite alloy, a custom material that delivers 30% greater yield and tensile strength than 4130 chromoly. Multiple treatments increase wear resistance and overall durability—you get a suspension that's built to handle wild terrain.

Improved Shock Tower

HCR includes an upgraded shock tower with your suspension upgrades. Improved durability supports your shocks, providing improved rigidity all around.

Includes Rhino 2.0 Axles
Your new suspension needs longer, stronger axles. This conversion kit comes with complete Rhino 2.0 Axles from SuperATV. These heavy-duty axles use chromoly steel and oversized components. They’re widely trusted for extreme riding applications.

Rhino 2.0 Axles:

• Uses 4340 chromoly steel bars, CVs, and components

• Trusted by thousands of riders

• 18-month warranty

Comes with ZRP Heavy-Duty Tie Rods

These tie rods feature a large diameter 7075 tie rod body with a 17-4 clevis, 17-4 custom-made hardware and high strength heim joints. They’re designed for the high-octane riding the X3 is built for.

ZRP Heavy-Duty Tie Rods

• Race-ready construction

• Heat-treated custom-machined bolts, clevis, and tapered stud

• Made from 7075 grade aluminum

• Hard anodized black finish

HCR Radius Rods

This suspension upgrade includes HCR’s high-clearance radius rods. Their impressive strength is ideal for performance applications.

HCR High-Clearance Billet Aluminum Radius Rods

• 7075 billet aluminum construction

• Black anodized finish

• 5/8-18 right-hand thread heim joints

• Bolt-on replacement

Upgrade to Keller Ball Joints

Get the most out of your Dual Sport conversion kit with better ball joints. Upgrade to Keller Ball Joints—they use a two-piece design to make it virtually impossible to rip out.

Keller Ball Joints

• 4340 hardened chromoly steel construction

• Two-piece threaded design doesn’t require a snap ring

• Easily adjustable, rebuildable, and greaseable

• Robust boot retaining ring prevents water intrusion

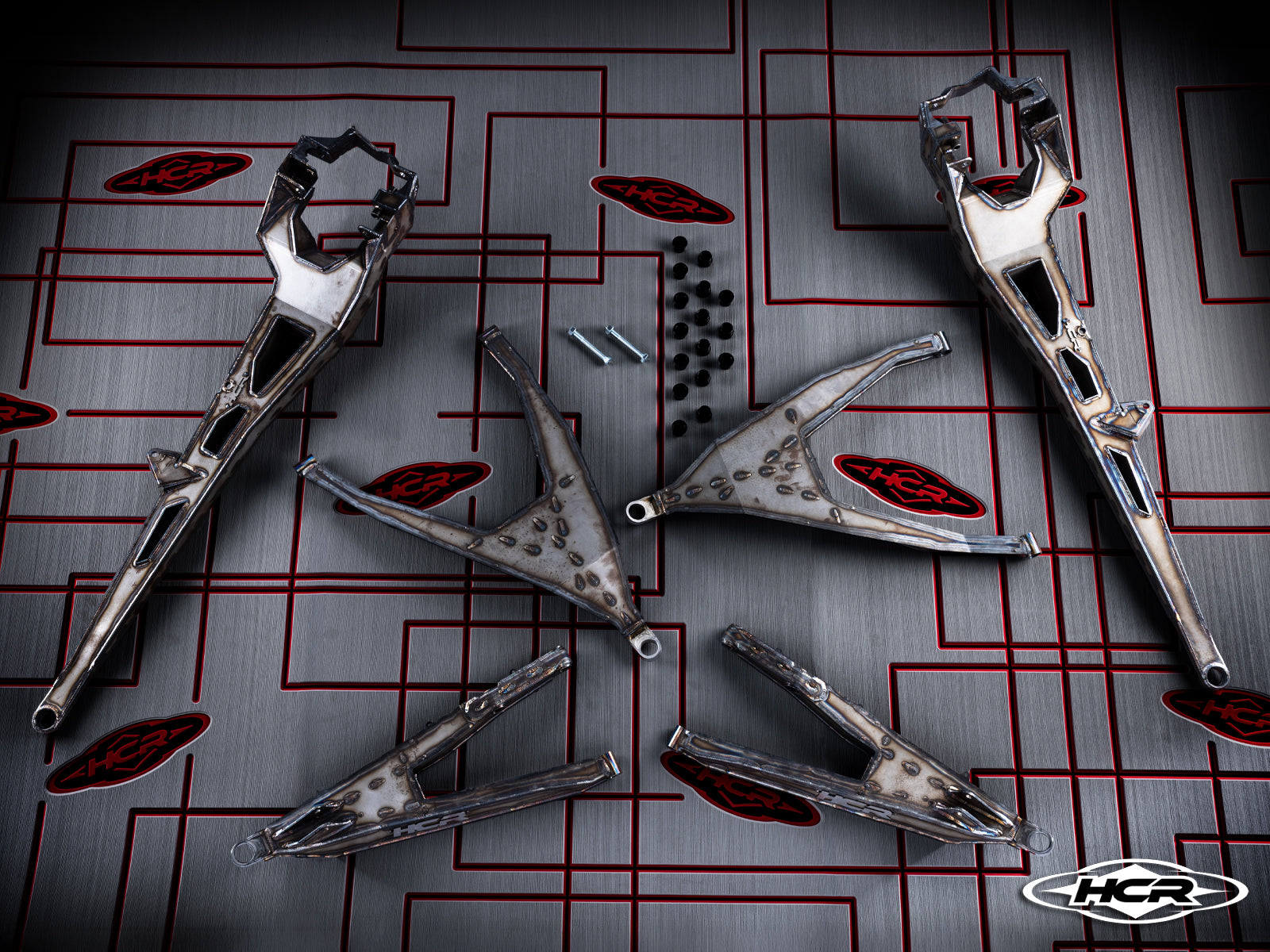

KIT INCLUDES

• 4 front A-arms (2 upper, 2 lower)

• 2 rear trailing arms

• ZRP tie rod kit

• Front and rear Rhino 2.0 Axles

• High-clearance billet radius rods

• Replacement bushings

• Brake line mounting hardware

• Shock bolts

FITMENT

• Can-Am Maverick X3 900 : 2018

• Can-Am Maverick X3 Turbo : 2017-2020

• Can-Am Maverick X3 Turbo R : 2018-2020

• Can-Am Maverick X3 DS Turbo R : 2021

• Can-Am Maverick X3 DS Turbo 64 : 2022+

• Can-Am Maverick X3 DS Turbo RR 64 : 2022+

• Can-Am Maverick X3 X DS Turbo R : 2017-2020

• Can-Am Maverick X3 X DS Turbo RR : 2020-2021

• Can-Am Maverick X3 X DS Turbo RR 64 : 2022+

• Can-Am Maverick X3 X MR Turbo : 2018-2021

• Can-Am Maverick X3 X MR Turbo RR 64 : 2022+

• Can-Am Maverick X3 X RC Turbo RR 64 : 2022+

• Can-Am Maverick X3 MAX Turbo : 2017-2020

• Can-Am Maverick X3 MAX Turbo R : 2018-2020

• Can-Am Maverick X3 MAX DS Turbo R : 2021

• Can-Am Maverick X3 MAX DS Turbo 64 : 2022+

• Can-Am Maverick X3 MAX DS Turbo RR 64 : 2022+

• Can-Am Maverick X3 MAX X DS Turbo : 2017-2019

• Can-Am Maverick X3 MAX X DS Turbo R : 2020

• Can-Am Maverick X3 MAX X DS Turbo RR 64 : 2022+

NOTE

• Will not fit 14” wheels


• Must reuse or replace OEM trailing arm radial bearings, front ball joints, crush sleeves, wear plates, mounting bolts, and other hardware

• HCR kits are made to order. Quality takes time

• If you have Smart-Shox, you will need to purchase these brackets in order for this kit to work: https://hcrracing.com/products/can-am-x3-smart-shock-brackets-for-hcr-control-arms
