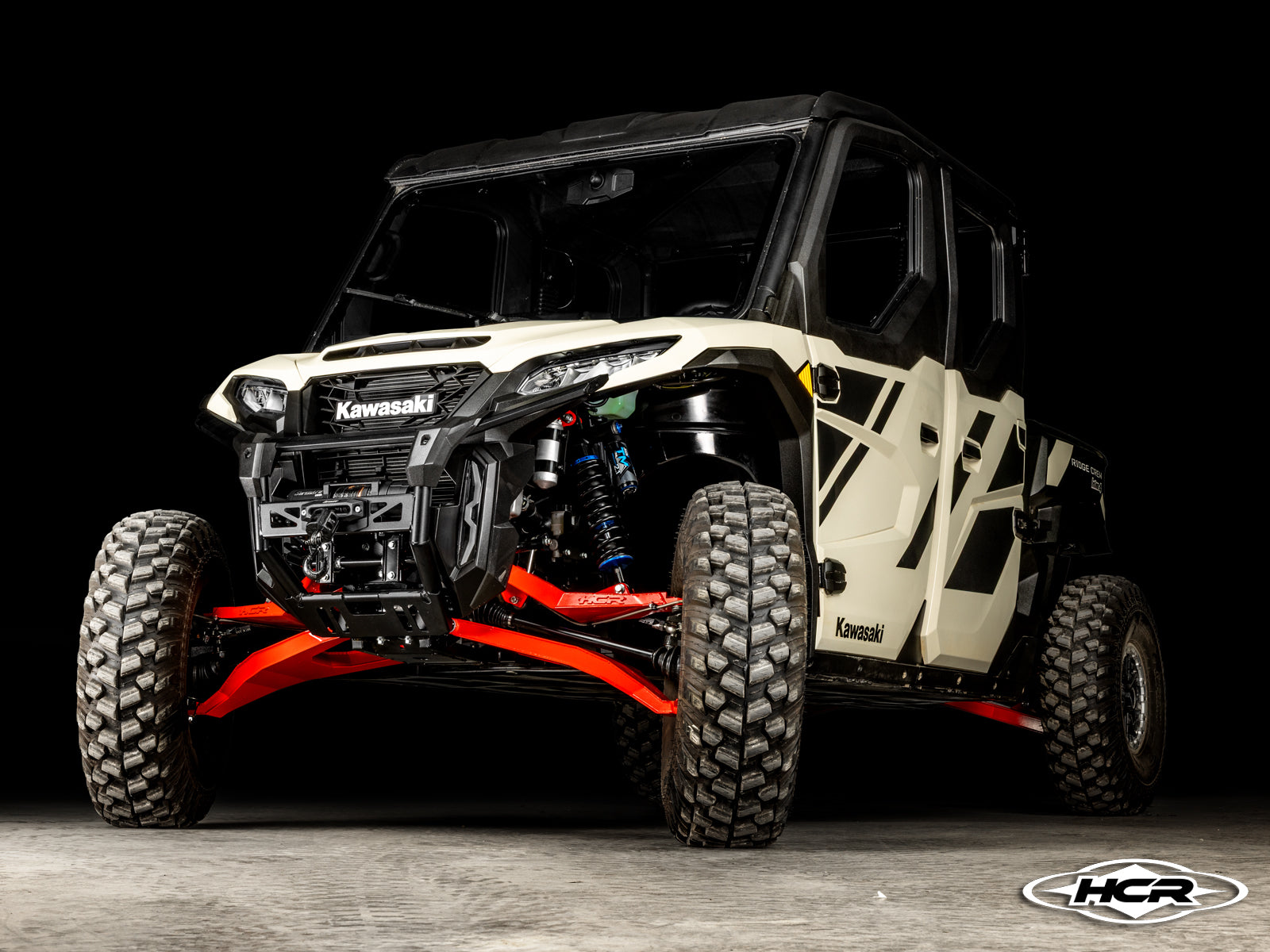

HCR Racing Mid-Travel Kit for the Kawasaki Ridge

Features

• Clears 36" tires

• 1.5" forward offset and 0.5" rear offset

• 8" wider stance than stock for improved stability and confidence

• 2" longer wheelbase

• High-clearance front and rear A-arms

• Easy 100% bolt-on, no-cut, no-drill installation

• Made from HCR's proprietary alloy

• Includes premium billet-aluminum tie rods with 5/8" FK Heim joints

• Includes UHMW bushings

• Includes Rhino 2.0 Axles

• Compatible with stock shocks and SDi shocks

• Compatible with the factory front sway bar

• Proudly made in the USA

Your Kawasaki Ridge is already a capable machine, but it could still be better. Turn it into a beast with HCR’s Mid-Travel Kit. The 8" increase in width and 2" longer wheelbase give you more high-speed stability. Increased suspension travel improves ride quality in chop, rocks, and washboard terrain. You get 1.5" forward offset up front and 0.5" offset in the rear for up to 36" tire clearance. We include high-clearance A-arms to help you get over obstacles and Rhino 2.0 Axles, so you have the confidence to ride hard. Plus, we use our proprietary alloy that’s 30% stronger than normal chromoly steel. It gives you more capability overall and a more aggressive look.

Includes Rhino 2.0 Axles
Your new suspension needs upgraded axles. That’s why this kit comes with Rhino 2.0 Axles from SuperATV. These heavy-duty axles use chromoly steel and oversized components. They’re widely trusted for extreme riding applications.

Rhino 2.0 Axles:

• Uses 4340 chromoly steel bars, CVs, and components

• Trusted by thousands of riders

• 18-month warranty

Includes Premium 6061-T6 Billet Aluminum Tie Rods

This tie rod kit takes your mid-travel kit to the next level. It’s made with anodized aircraft-grade aluminum for extreme strength. These tie rods use PTFE-lined 5/8” heim joints on both ends for unbeatable reliability. It’ll stand out in the crowd and stand up to the toughest rides you can find.

• Anodized aircraft-grade aluminum construction

• PTFE-lined 5/8" Heim joints on both ends

Upgrade to SDi Terrain Master 2.1 Shocks

You don’t want weak shocks with a heavy-duty suspension. These durable SDi shocks offer adjustable compression, rebound, and real-time tuning for a smoother, more controlled ride.

• Large-bore compression adjuster

• Billet aluminum T6 pistons

• Quick-adjust preload ring

• All-aluminum construction

• Hardened chrome-coated shafts

• Lightweight barrel springs

• PTFE-lined bearings

• Fully rebuildable seal head

UHMW Bushings Included

Worn bushings can make your suspension feel loose and rough. This kit includes new self-lubricating UHMW bushings to get the most out of your suspension.

• Made with self-lubricating UHMW (Ultra-High Molecular Weight) polyethylene

• Low-wear characteristics give you more miles than stock bushings

• CNC-machined for a perfect fit

Kit Includes

• (4) Front A-arms

• (4) Rear A-arms

• (4) Rhino 2.0 Axles

• UHMW bushings

• Billet aluminum tie rod kit

• Extended brake lines

• Shock relocation brackets

Fitment:

Kawasaki Ridge HVAC : 2024+
Kawasaki Ridge HVAC Camo : 2025+
Kawasaki Ridge Limited : 2024+
Kawasaki Ridge Limited HVAC : 2024+
Kawasaki Ridge Ranch Edition : 2024+
Kawasaki Ridge XR HVAC : 2024+
Kawasaki Ridge XR Deluxe HVAC : 2025+
Kawasaki Ridge Crew HVAC : 2025+
Kawasaki Ridge Crew HVAC Camo : 2025+
Kawasaki Ridge Crew XR : 2025+
Kawasaki Ridge Crew XR HVAC : 2025+
Kawasaki Ridge Crew XR Limited HVAC : 2025+

Notes:

• HCR kits are made to order. Quality takes time.
