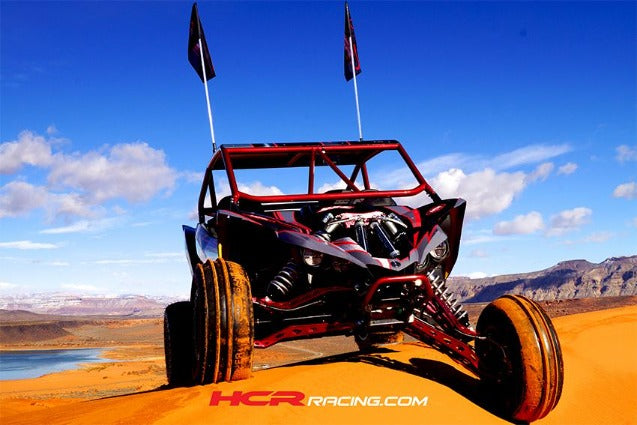

Yamaha YXZ 1000 Elite Long Travel Suspension Kit

Yamaha YXZ 1000 Elite Long Travel Suspension Kit

Code: YXZ-02600
$8,999.99
In Stock

HCR Suspension's YXZ Elite Long-Travel Suspension System

Part #: YXZ-02600

Kit Features:

  • Usable Travel : Over 20 front & Over 21” Rear Travel
  • +4 inches wider per side; Additional 8 inches of track width
  • +4 inches of wheel base added ; 2 front , 2 rear
  • minimal weight increase of only 13 pounds on Elite kit while increasing strength exponentially.
  • Fiber Laser Cut construction for precise fit and finish
  • CNC'd 4130 heat treated billet mounting points for increased integrity
  • Angled catacomb design for optimal force distribution
  • RCV +4 extended axle bars. Heat Treated & through hardened
  • Custom King 2.5 HCR race Series Shocks Off -road shocks
  • Unique trailing arm inspired design for minimal added weight and increased strength.
  • High Clearance Boxed A-Arm Design
  • Each piece is carefully tig welded for strength and aesthetics
  • OEM ball joints are reused to maximize low speed steering, ease & smooth travel with less maintenance
  • compatible with stock wheels
  • High-Clearance Arms provide an increase of 1.25” in ground clearance
  • 100% Bolt-on installation using factory mounting points
  • Larger front tube mounts are 1.25” in diameter with Delrin bushings for increased strength and durability
  •

    HCR Suspension's YXZ Elite Long-Travel Suspension System

    Part #: YXZ-02600

    Kit Features:

  • Usable Travel : Over 20 front & Over 21” Rear Travel
  • +4 inches wider per side; Additional 8 inches of track width
  • +4 inches of wheel base added ; 2 front , 2 rear
  • minimal weight increase of only 13 pounds on Elite kit while increasing strength exponentially.
  • Fiber Laser Cut construction for precise fit and finish
  • CNC'd 4130 heat treated billet mounting points for increased integrity
  • Angled catacomb design for optimal force distribution
  • RCV +4 extended axle bars. Heat Treated & through hardened
  • Custom King 2.5 HCR race Series Shocks Off -road shocks
  • Unique trailing arm inspired design for minimal added weight and increased strength.
  • High Clearance Boxed A-Arm Design
  • Each piece is carefully tig welded for strength and aesthetics
  • OEM ball joints are reused to maximize low speed steering, ease & smooth travel with less maintenance
  • compatible with stock wheels
  • High-Clearance Arms provide an increase of 1.25” in ground clearance
  • 100% Bolt-on installation using factory mounting points
  • Larger front tube mounts are 1.25” in diameter with Delrin bushings for increased strength and durability
  •

    Who We Are

    HCR's proprietary billet slot and tab design and catacomb boxed arms are built to withstand the vigorous beatings of off-road riding while achieving the optimal combination of strength and appeal. Every external weld is an internal plate structured into the design. All parts are Fiber laser cut and CNC bent for precise fit and finish. An intensive process is used during each design to simulate and refine the new geometry to match the characteristics of the stock suspension while increasing suspension travel. Critical measurements are verified, such as ball joint angle, CV joint angle, and clearance to surrounding parts to ensure no binding or interference. All products are hand tig welded by seasoned craftsmen. The quality fit and finish, ease of installation, and top shelf performance of these kits are what sets HCR Racing apart from the competition. No kits are released to the public without numerous hours of vigorous testing in the rocks, desert, and dunes for true dual sport application.


    Materials

    HCR Racing introduced a new proprietary material with the release of the Elite series suspension system. This unique custom alloy, created for the Elite series, produces unmatched strength while adding minimal weight. The custom alloy used in HCR's manufacturing process is 30% stronger in tensile and yield strength compared to 4130 series Chromoly. This custom material goes through several processes and is hardened for better wear resistance and overall strength. With hese higher tensile and yield strengths, HCR is able to product innovative designs without compromising strength and integrity by holding to HCR traditional internal box and ribbing methods.


    Shocks

    Feel confident in the demanding terrain with King HCR Race Series Shocks tuned by Bret King himself. The shocks provided with an HCR Complete suspension system are custom built to work specifically with the geometry of each kit. These custom HCR Series shocks are longer eye to eye and stroke, custom valved and sprung to achieve optimum performance without compromising motion ratio and minimizing shock fatigue. This allows for less compound leverage on the arm preventing further bottoming and damage to components. The KING HCR Series are true off-road shocks with larger internals than a competing UTV shock; providing minimal added weight without compromising performance. Backed by KING, HCR provides a 3 month tuning opportunity to meet with a KING Technician for a live testing session if a different valving option is preferred. Most custom shocks will be available in HCR Edition black and Silver at no extra charge.





    Axles

    HCR recently Partnered with RCV performance through the release of the YXZ Long Travel Kit. HCR has been working closely with RCV to provide the strongest axle options on the market, boasting twice the strength of a Factory axles. RCV Custom HCR Axle bars will be included and heavy duty assemblies will be available as an upgrade. RCV's Revolutionary axle shaft design provides the strength, smoothness, and reliability you need to power through the most demanding off road conditions.These new axles are included in the XP1000 Long Travel kit, Teryx Long Travel kit, Maverick XDS long Travel kit and XP900 Long Travel kit as well.
